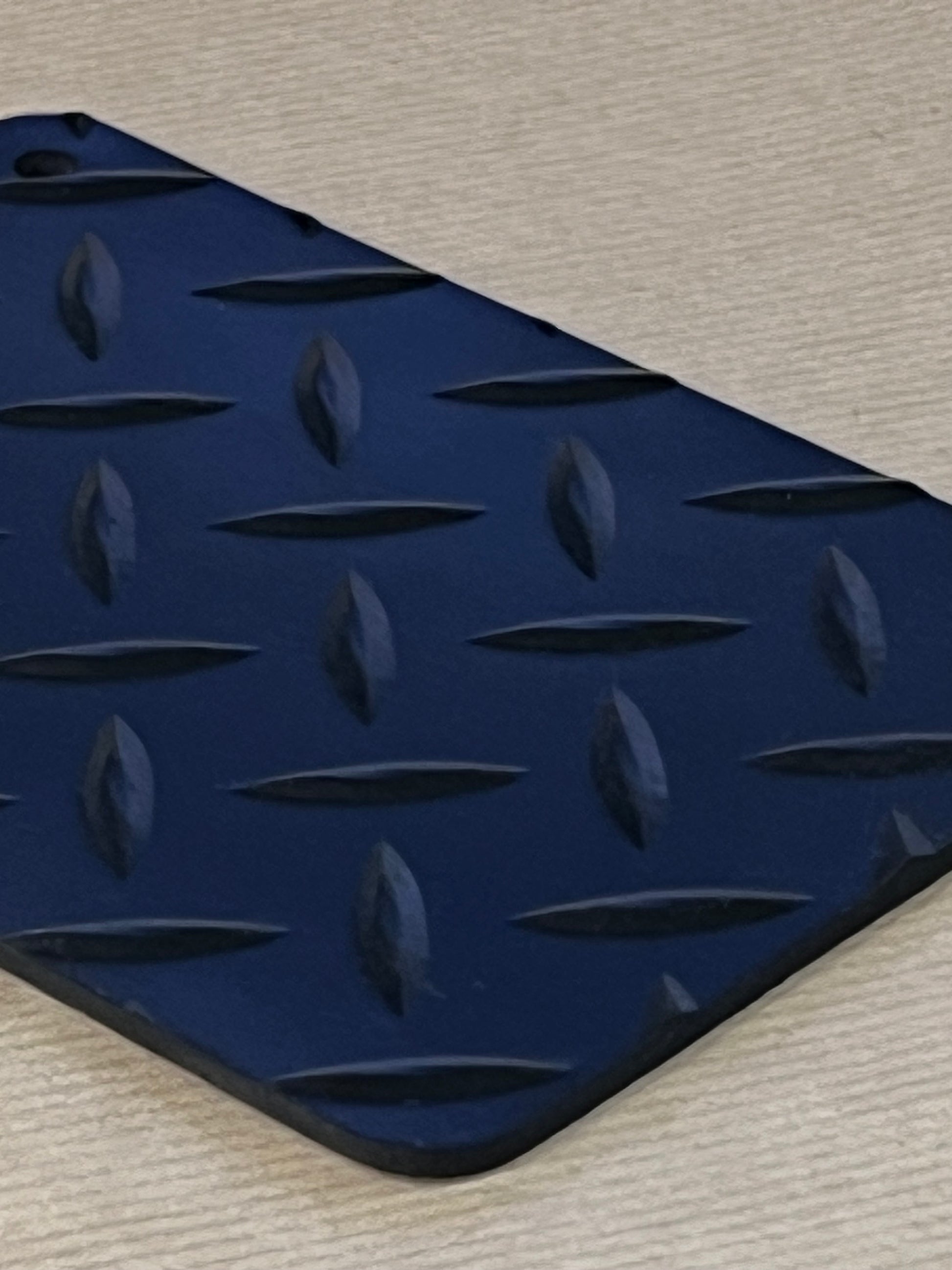

Our Rhomboid Checkerplate Rubber Matting (Grade N27) is a robust, non-slip flooring solution designed for high-traffic environments. Featuring a raised rhomboid (1 Bar Checkerplate) surface, it delivers outstanding grip and durability, reducing the risk of slips even in wet or oily conditions. Made from a high-quality NR/SBR rubber blend, this matting provides long-lasting performance in demanding industrial and commercial applications.

Custom Sizing and Options

This matting is supplied in 3mm thickness, with a standard roll width of 1400mm (10m roll length). Other widths and thicknesses may be available on request. All rolls are priced individually. For larger quantities or bespoke sizes, please get in touch with the team.

Technical Specifications

• Grade: N27
• Colour: Black
• Material: Natural/SBR Rubber Blend
• Surface: Rhomboid (1 Bar Checkerplate)
• Hardness: 70° Shore A (±5)
• Specific Gravity: 1.50 g/cm³
• Tensile Strength: 3.5 MPa
• Elongation at Break: 300%
• Compression Set: 43%
• Tear Strength: 12 kN/m
• Abrasion Resistance: 480 mm³
• Temperature Range: -20°C to +70°C

Common Applications

• Factory and workshop flooring
• Ramps, walkways, and access areas
• Warehouse and loading bay surfaces
• Vehicle and trailer floors
• Commercial and industrial entrances

Order Your Rhomboid Checkerplate Rubber Matting

Grade N27 matting is available in 3mm thickness with a standard 1400mm width (10m length). Standard pricing starts at £175.00 per roll, plus a fixed delivery rate of £55. Select your preferred size and add to cart, or contact us for bulk or bespoke orders.
