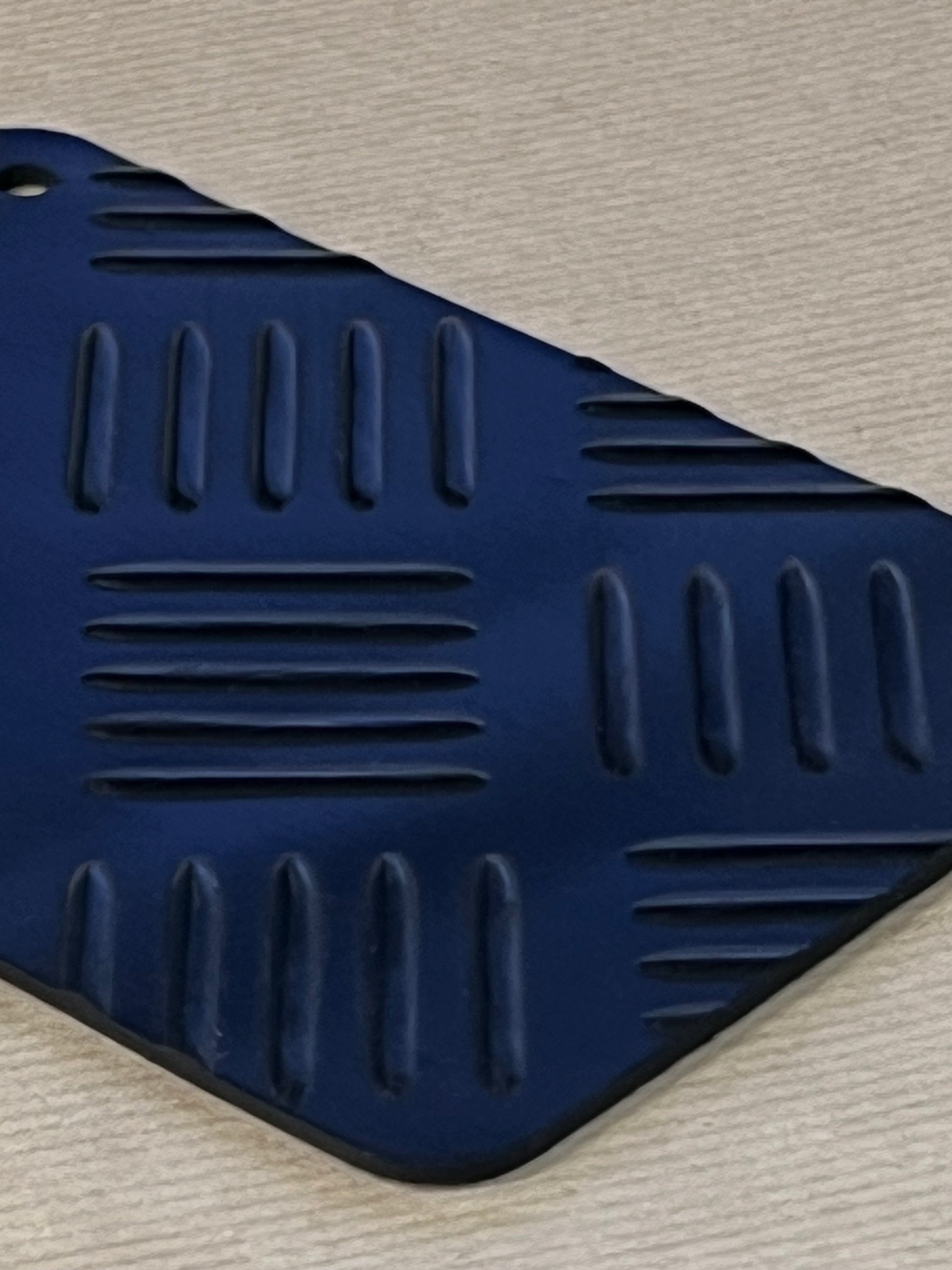

Our 5 Bar Checkerplate Rubber Matting (Grade N28) is a heavy-duty, non-slip flooring solution designed for safety and durability. Its raised checkerplate surface provides excellent grip underfoot, reducing the risk of slips in wet or high-traffic environments. Manufactured from a premium NR/SBR rubber blend, this matting combines toughness with long service life, making it ideal for demanding industrial and commercial settings.

Custom Sizing and Options

This matting is supplied in 3mm thickness, with standard roll widths of 1220mm and 1400mm (10m roll length). All rolls are priced individually. For larger quantities or bespoke sizing, please get in touch with the team.

Technical Specifications

• Grade: N28
• Colour: Black
• Material: Natural/SBR Rubber Blend
• Surface: 5 Bar Checkerplate
• Hardness: 65° Shore A (±5)
• Specific Gravity: 1.5 g/cm³
• Tensile Strength: 3.5 MPa
• Elongation at Break: 300%
• Compression Set: 43%
• Temperature Range: -20°C to +70°C

Common Applications

• Walkways, ramps, and access areas
• Factory and workshop floors
• Vehicle and trailer flooring
• Warehouse and loading bay surfaces
• Any high-traffic area requiring enhanced safety and durability

Order Your 5 Bar Checkerplate Rubber Matting

Grade N28 matting is available in 3mm thickness with roll widths of 1220mm and 1400mm (10m length). Standard pricing starts at £159.00 per roll, plus a fixed delivery rate of £55. Select your preferred size and add to cart, or contact us for larger or bespoke orders.
