Product Range:

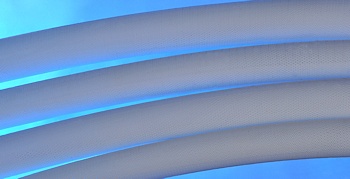

Platinum Cured Pressure Hose
Premium quality polyester reinforced hose for pressure applications in the food/pharmaceutical industries.
Certification & Data Sheet:
This is a material certification that confirms the above product types have been manufactured to and complies to or exceeds the following regulations:
- FDA Regulations CFR 177.2600
- France Journal Officiel-Brochure 1227
- German BGVV XVA & LIIA
- Italy Gazetta Ufficiale - 1973
- USDA Standards
- ISO 10993 Sections 5, -6, -10, -11
- USP XXVI Class VI
- European Pharmacopoeia 3.1.9
Typical Physical Properties:
| Description: | Platinum Cured Silicone |
| Colour: | Transparent |
| Specific Gravity: | 1.16 |
| Shore Hardness: | 62 |
| Tensile Strength: | 11 MPA |
| Elongation at Break % Appx: | 563 |
| Tear Strength: | 40.0 KN/M |
| Rebound Resiliance (22hrs/177ºc) % appx: | 54.0 |
| Polyester Fabric: | 180°c Max |
| ID (mm): | Tols (mm) | Wall (mm) | Tols (mm) | Coil Length |
| 12.70 | ±0.50 | 4.90 | ±0.50 | 4m |
| 19.00 | ±0.50 | 4.90 | ±0.50 | 4m |
| 25.40 | ±0.50 | 4.90 | ±0.50 | 4m |
| 31.80 | ±0.50 | 4.90 | ±0.50 | 4m |
| 38.10 | ±0.50 | 4.90 | ±0.50 | 4m |
| 50.80 | ±0.50 | 4.90 | ±0.50 | 4m |
