Product Range:

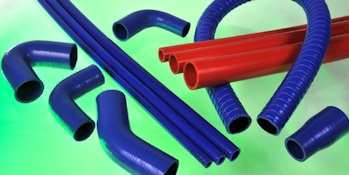

Automotive Hoses
Mandrel built hoses generally take over from the braided format where the size range goes beyond the limitations of extruded products and when the incorporation of wire is required for vacuum applications.
Hoses up to 300mm diameter can be made. Our range of mandrel built hoses include Platinum cured for pharmaceutical applications, Peroxide cured coloured hoses for coolant and various flame retardant and industrial grades for technical applications.
| ID (mm) | WALL (mm) | AVAILABLE IN |
| 6.0 | 4.5 | Radiator/Coolant Hose Elbows – 135°, 90° & 45° (6” Legs) |
| 6.5 | 4.0 | Castellated Hose |
| 8.0 | 4.0 | Castellated Hose |
| 8.0 | 4.5 | Radiator/Coolant Hose Elbows – 135°, 90° & 45° (6” Legs) |
| 9.5 | 4.0 | Castellated Hose |
| 10.0 | 4.5 | Radiator/Coolant Hose Elbows – 135°, 90° & 45° (6” Legs) |
| 12.7 | 4.0 | Castellated Hose |
| 12.7 | 4.5 | Radiator/Coolant Hose, Elbows – 135°, 90° & 45° (6” Legs) |
| 16.0 | 4.0 | Castellated Hose |
| 16.0 | 4.5 | Radiator/Coolant Hose Elbows – 135°, 90° & 45° (6” Legs) |
| 18.0 | 4.5 | Radiator/Coolant Hose Elbows – 135°, 90° & 45° (6” Legs) |
| 19.0 | 4.0 | Castellated Hose |
| 19.0 | 4.5 | Radiator/Coolant Hose Elbows – 135°, 90° & 45° (6” Legs) |
| 20.0 | 4.5 | Radiator/Coolant Hose Elbows – 135°, 90° & 45° (6” Legs) |
| 22.0 | 4.0 | Castellated Hose |
| 22.0 | 4.5 | Radiator/Coolant Hose Elbows – 135°, 90° & 45° (6” Legs) |
| 25.0 | 4.5 | Radiator/Coolant Hose Elbows – 135°, 90° & 45° (6” Legs) |
| 25.4 | 4.0 | Castellated Hose |
| 28.0 | 4.0 | Castellated Hose |
| 28.0 | 4.5 | Radiator/Coolant Hose Elbows – 135°, 90° & 45° (6” Legs) |
| 30.0 | 4.0 | Castellated Hose |
| 30.0 | 4.5 | Radiator/Coolant Hose Elbows – 135°, 90° & 45° (6” Legs) |
| 32.0 | 4.0 | Castellated Hose |
| 32.0 | 4.5 | Radiator/Coolant Hose Elbows – 135°, 90° & 45° (6” Legs) |
| 35.0 | 4.0 | Castellated Hose |
| 35.0 | 4.5 | Radiator/Coolant Hose Elbows – 135°, 90° & 45° (6” Legs) |
| 38.0 | 4.0 | Castellated Hose |
| 38.0 | 4.5 | Radiator/Coolant Hose Elbows – 135°, 90° & 45° (6” Legs) |
| 40.0 | 4.5 | Radiator/Coolant Hose Elbows – 135°, 90° & 45° (6” Legs) |
| 42.0 | 4.0 | Castellated Hose |
| 42.0 | 4.5 | Radiator/Coolant Hose Elbows – 135°, 90° & 45° (6” Legs) |
| 45.0 | 4.0 | Castellated Hose |
| 45.0 | 4.5 | Radiator/Coolant Hose Elbows – 135°, 90° & 45° (6” Legs) |
| 48.0 | 4.0 | Castellated Hose |
| 48.0 | 4.5 | Radiator/Coolant Hose Elbows – 135°, 90° & 45° (6” Legs) |
| 50.8 | 5.0 | Radiator/Coolant Hose Elbows – 135°, 90° & 45° (6” Legs) |
| 51.0 | 5.0 | Castellated Hose |
| 54.0 | 5.0 | Castellated Hose Radiator/Coolant Hose Elbows – 135°, 90° & 45° (6” Legs) |
| 55.0 | 5.0 | Radiator/Coolant Hose Elbows – 135°, 90° & 45° (6” Legs) |
| 57.0 | 5.0 | Castellated Hose, Radiator/Coolant Hose, Elbows – 135°, 90° & 45° (6” Legs) |
| 60.0 | 5.0 | Castellated Hose Radiator/Coolant Hose Elbows – 135°, 90° & 45° (6” Legs) |
| 61.0 | 5.0 | Radiator/Coolant Hose Elbows – 135°, 90° & 45° (6” Legs) |
| 63.0 | 5.0 | Castellated Hose |
| 64.0 | 5.0 | Radiator/Coolant Hose Elbows – 135°, 90° & 45° (6” Legs) |
| 65.0 | 5.0 | Castellated Hose |
| 70.0 | 5.0 | Castellated Hose Radiator/Coolant Hose Elbows – 135°, 90° & 45° (6” Legs) |
| 76.0 | 5.0 | Castellated Hose Radiator/Coolant Hose Elbows – 135°, 90° & 45° (6” Legs) |
| 80.0 | 5.0 | Radiator/Coolant Hose Elbows – 135°, 90° & 45° (6” Legs) |
| 83.0 | 5.0 | Radiator/Coolant Hose Elbows – 135°, 90° & 45° (6” Legs) |
| 85.0 | 5.0 | Radiator/Coolant Hose Elbows – 135°, 90° & 45° (6” Legs) |
| 89.0 | 5.5 | Radiator/Coolant Hose Elbows – 135°, 90° & 45° (6” Legs) |
| 95.00 | 5.5 | Radiator/Coolant Hose |
| 102.0 | 5.5 | Radiator/Coolant Hose Elbows – 135°, 90° & 45° (6” Legs) |
| 115.0 | 5.5 | Radiator/Coolant Hose Elbows – 135°, 90° & 45° (6” Legs) |
| 127.0 | 5.5 | Radiator/Coolant Hose Elbows – 135°, 90° & 45° (6” Legs) |
| 140.0 | 5.5 | Radiator/Coolant Hose |
| 152.0 | 5.5 | Radiator/Coolant Hose |
| 178.0 | 5.5 | Radiator/Coolant Hose |
| 220.0 | 5.5 | Radiator/Coolant Hose |
Reducers
90° Reducing Elbows and Straight Reducers are available in blue, red and black. Reducing elbows have 152mm (6”) legs, and straight reducers are 102mm (4”) long. These items are available with inner diameters as follows:
| ID (mm) | 13-16, 13-19, 16-19, 16-22, 19-22, 19-25, 19-28, 22-25, 22-28, 22-35 |
| ID (mm) | 22-38, 25-28, 25-32, 25-38, 25-42, 28-32, 28-35, 28-38, 32-38, 32-42 |
| ID (mm) | 32-45, 35-38, 35-40, 38-45, 38-51, 45-51, 45-54, 45-57, 50-60, 50-70 |
| ID (mm) | 51-54, 51-57, 51-63, 51-76, 57-70, 60-70, 63-76, 70-76, 70-80, 76-102, 80-90 |
