Novus 40
Novus 40 is a good quality compressed sheet material based on a blend of aramid and inorganic fibres with a rubber binder system.
Service
Novus 40 is a general purpose material suitable for use in a wide range of applications, including hot and cold water, steam, oils, fuels, gases and a wide range of general chemicals.
Availability
| Standard sheet sizes (m): | 2.0 x 2.0 2.0 x 1.5 2.0 x 1.0 1.5 x 1.5 1.5 x 1.0 |
| Thickness range (mm): | 0.4 to 3.0 |
| Standard roll sizes (m): | 6.0 x 2.0 |
Available with fine mesh mild steel reinforcement: Novus 40 Metallic.
It can also be supplied with anti-stick coating and graphite coating.
Physical properties
| Thickness | 1.5mm | |
| Density | 2.0g/cc | |
| Tensile Strength | ASTM F152 | 12MPa |
| Compression | ASTM F36 | 9% |
| Recovery | ASTM F36 | 50% min |
| Residual Stress | BS 7531 (300°C) DIN 52913 |
20MPa 29MPa |
| Gas Leakage | BS 7531 | <1.0cc/min |
| ASTM Oil 1 | Thickness Increase | 10% |
| IRM 903 Oil | Thickness Increase | 20% |
| ASTM Fuel B | Thickness Increase | 20% |

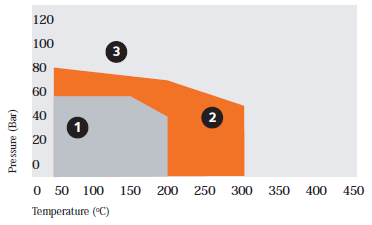

Novus 40 Pressure/Temperature Limits
1. Suitable subject to chemical compatibility.
2. Suitable in some cases but check your application requirements with Flexitallic.
3. Contact the Technical Team for applicatis on with higher temperatures and pressures. Applicable to 1.5mm and below.
The operating temperature of non-asbestos sheet material is related to the thickness of materials selected. Thinner materials give better temperature and pressure properties.
